I.Equipment Description:
Underground Cable Tester Fault Pipe Locator for Intelligent Pipe Route Tracing
Underground Cable Tester Fault Pipe Locator for Intelligent Pipe Route Tracing

1.Product Application

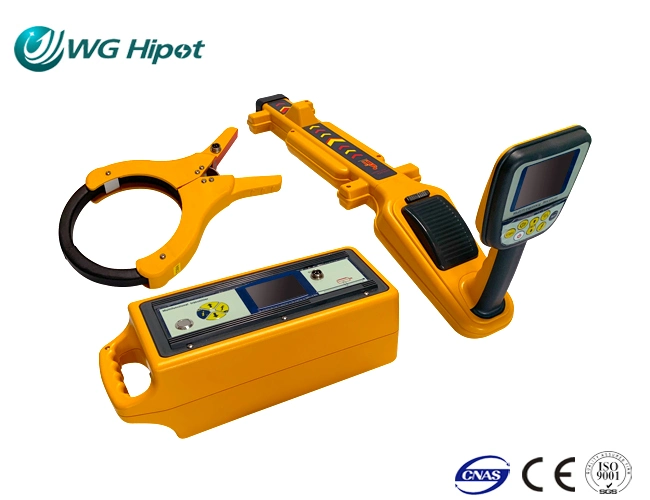

WXGS-V Intelligent underground pipe and cable route tracer
Digital multifunctional cable detection of Comprehensive Machine
2.Features

5 Features of the WXGS-V Cable Locator Equipment:
1. Digital multifunctional cable detection of Comprehensive Machine
2. Solution to live cable routing problems cannot be solved at present
3. You can find the buried cable jacketing damage to ground short circuit and open - circuit fault
4. Can be recognition required cable in multi-charged cables
5. Configuration rechargeable batteries, may completed all the tests without electricity
Find the path of the live cable

You can easily solve the paths find problem in the live cable. Put the coupling clamp to the under test cable, Transmitter coupling signals by coupling clamp on target cable, Path along the cable can receive the signal applied from the transmitter. Such method can detect the cable length is not less than 3 km. The receiver can detect the 50Hz frequency signals from the live cable, this method to distinguish the live cable and the disconnected cables is very useful. In this way, does not need to use transmitter.
Find Buried cable fault
In some cases, Operator cannot close to the cable to connect directly or using coupling clamp, you can use the built-in induction antenna of transmitter to send output signal, Signal will induction to the measured underground cables for locating exploration, This method to detect Cable Depth will not less than 2 meters.
Identification of live cables
Coupling the emissions clamp of transmitter on the cable, couple the receiver clamp on the cable exposure of the other side, At this point the strength of the signal can be determine which one is the applied signal cable.(This method requires a special clamp for receiver.)
Main Features

1). One-handed operation, the thumb control of all operations
2). Arrow indicates the path direction
3). Voice prompts and signal strength indicator
4). One Touchdepth measurement
5). Manual or automatic gain control
6). Automatically match the transmitter output power
7). Both receiver and transmitter battery indicator
8). May choose a variety appropriate frequency
9). 50/60Hz wire positioning mode
10). Transmitter automatic test insulation resistance
11).Simple operation, no training can be mastered
3.Technical Indicators

SPECIFICATIONS

Way of working

Peak method, valley method, A-frame method

Cable routing

Direct / Coupling / Induction

Cable Identification

Direct Connect (power cut) / coupling (has power)

Power Supply

Rechargeable Batteries

Operating Freq

Low freq, Mid Freq, Hi freq, RF, 50Hz

Clamp Config

Disconnected cable: 1 clamp / Live cable: 2 clamps

Accuracy

0-5m: ±5%       5-10m: ±10%

Depth of Probing

Direct: 5m / Coupling: 3m

Dimensions (L*W*H ins)

Receiver: 27.6 x 4.3 x 3.7 / Transmitter: 12.6 x 6.3 x 5.1

Weight (lbs)

Receiver: 5.1kg / Transmitter: 7.9kg

Transmitter

Operating Freq

Low freq, Mid Freq, Hi freq, RF

Mode

Direct-connect, coupling and inductive method

Matched load

5 ohms ~ 3000 ohms

Display

5 digits

Output power

maximum outpower >8w

Receiver

Operating Freq

Low freq, Mid Freq, Hi freq, RF, 50Hz

Current indication

Display the effective current value of the cable under test

Detection depth

Max depth > 5 meters (straight method)

Maximum range

Straight method with good insulation cables up to 15KM

Accuracy

Low freq ± (1-5)% 2.5m       RF: ± (5-12)%  2.5 m
