VP400-2515Z Standard Digital Readout Vertical Profile Projector Digital Vertical Profile Projector
Profile Projector technology designed to display accurate magnification of workpiece for comparision and precision measurements with data processing.
- The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
- With coating process reflector, clearer image and great dustproof;
- Adjustable contour and surface illumination, to meet with difference workpiece demand;

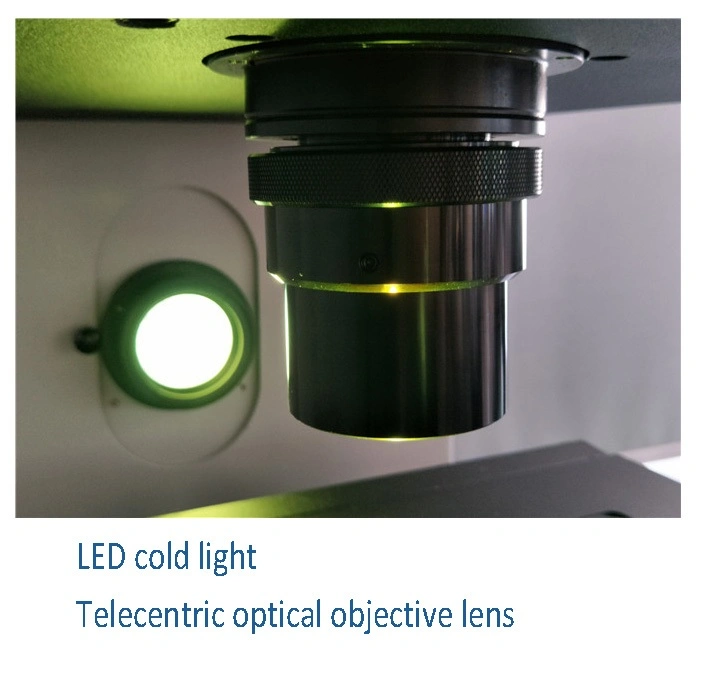

- Imported high light and long using life LED illumination ,to ensure precision measurement demand;
- High resolution optical system with clear image and magnification error is less than 0.08%;
- Powerful Bi-axial fan cooling system,highly increase using life;
- Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
- Built-in Mini-printer, can print and save data;
- With standard 10X objective, optional 20X,50X,100X objective,rotary table, foot switch ,clamp, etc.
|Product Name||Ø400mm Digital Vertical Profile Projector|
|Metal Stage Size||308x408mm|
|Glass Stage Size||198x306mm|
|Product Dimension(L×W×H)||1003 x 617 x 1309mm|
|Screen||φ312mm,Measurement Range ≤ Ø300|
|Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6'|
|Digital Readout||DP400 (510-340) Multifunction colorful LCD digital readout|
|Illumination||Contour Illumination:3.2V/10W LED|
Surface Illumination:3.2V/10W LED
|Working Environment||Temp 20ºC±5ºC,Humidity 40%-70%RH|
|Power Supply||AC110V/60Hz; 220V/50Hz,150W|
|Cold-air Blowing System||3-axis Powerful Fan|
|Field of View||φ30mm||φ15mm||φ6mm||φ3mm|
Term of Service:
1) We have the professional technical after-sales service group and supply the lifelong technical service support to to the customers.
We not only offer operation video but also offer English operation manual.
Besides, We will provide video-conference If customers require online service.
2)Warranty of 12 months:
Within the guarantee period, we will send the spare parts for free if the machine have quality problems, excluding artificial damage,force majeure and transportation reason.
We also can send the technician to repair the machine under the customers' require, and the customers only pay round-trip ticket, accommodations and meal expenses, no need pay any
wages to the technician in this period.
Exceeded warranty:We keep all the service, but the customer need pay all the charges ,including spare parts and transportation cost.
